OmniCoT: A Benchmark for Global and Multi-Step Panoramic Reasoning

Abstract

Multimodal Large Language Models (MLLMs) have demonstrated promising spatial reasoning capabilities, while these abilities remain underexplored in the emerging visual modality of panoramic imagery. The full 360° × 180° field of view of panoramas essentially supports complex global multi-step reasoning, which is also the fundamental advantage of panoramas in applications such as embodied intelligence. However, existing panoramic benchmarks largely focus on simplistic queries that rely on local cues or single-/few-step reasoning, thereby ignoring the fundamental advantage of panoramas and failing to fully exploit their potential. To address this gap, we introduce OmniCoT, a panoramic spatial reasoning suite designed to enable MLLMs to use global evidence and perform multi-step inference across viewpoints. It includes OmniCoT-B for evaluation, which measures both answer accuracy and reasoning quality, OmniCoT-Real as a manually annotated real-world subset to quantify the Sim-to-Real gap, and OmniCoT-T for training with structured stepwise Chain-of-Thought annotations.

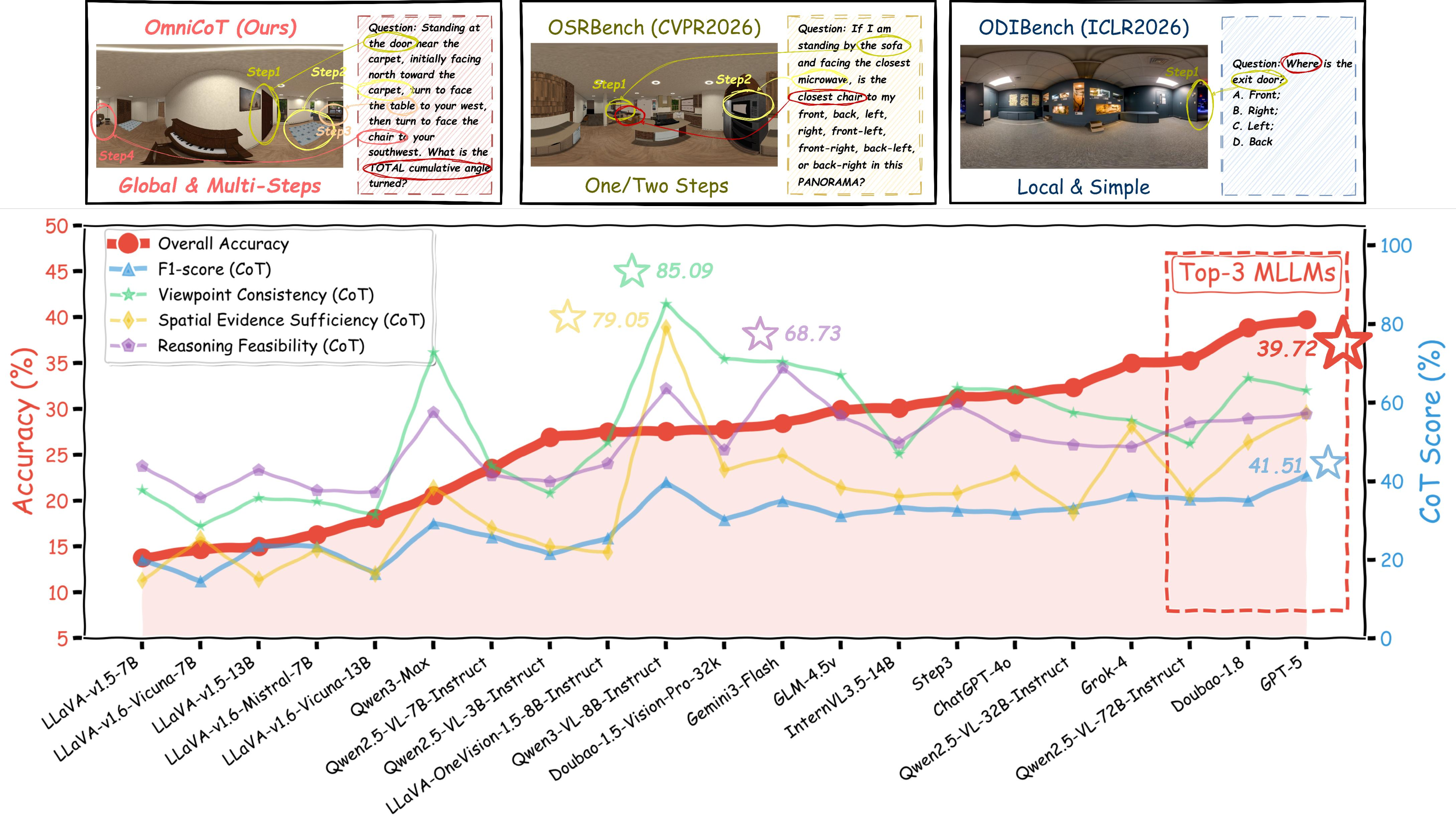

Figure 1: Comparison with existing panoramic benchmarks. While prior works rely on synthetic data and local cues, OmniCoT demands comprehensive multi-hop inference across the full 360° view and uniquely incorporates a manually annotated real-world subset.

Core Contributions

OmniCoT-B Benchmark

A new benchmark with 6.7K data points that challenges MLLMs to fully use the 360° space, requiring multi-hop reasoning rather than simple local cues.

OmniCoT-T Training Set

A purpose-built training set with 14.3K structured stepwise Chain-of-Thought annotations linking intermediate steps to panoramic evidence.

OmniCoT-R1 Model

A baseline model developed via a two-stage strategy: SFT for structured reasoning and GRPO to enhance complex multi-step spatial consistency.

OmniCoT-Real

A manually annotated real-world subset of 1K panoramas to quantify the Sim-to-Real gap in current panoramic reasoning models.

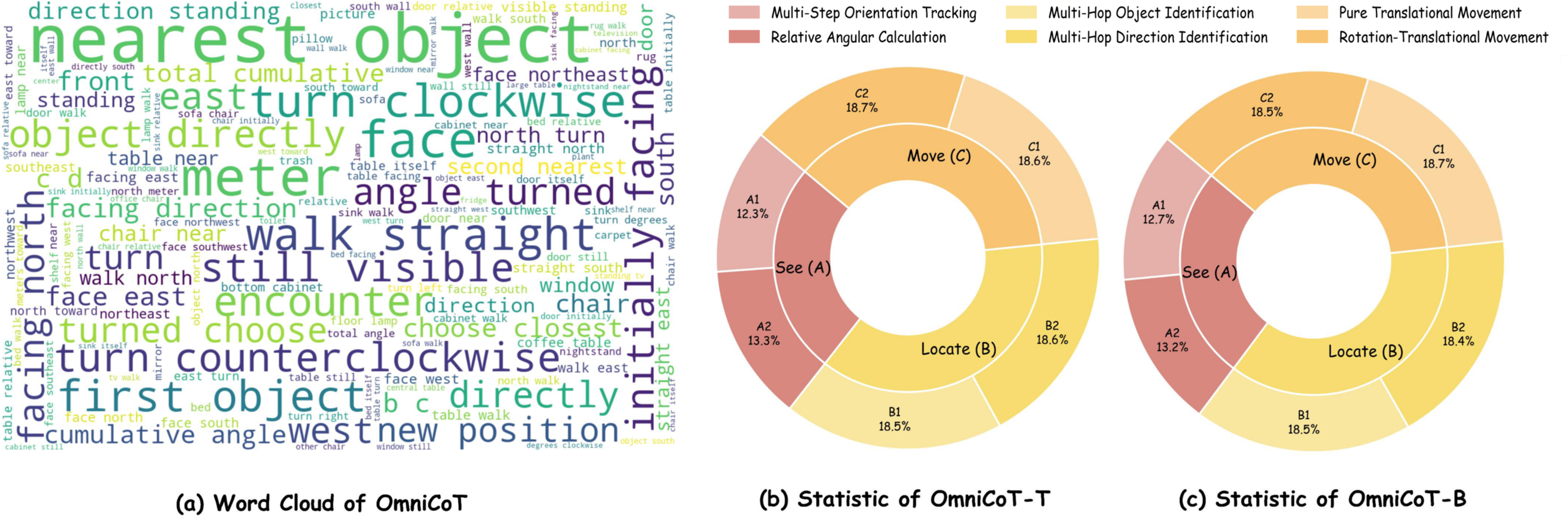

Dataset Statistics

OmniCoT exhibits broad lexical coverage and balanced question-type composition across the See-Locate-Move taxonomy.

"See-Locate-Move" Taxonomy

      The core philosophy of OmniCoT: We decompose panoramic spatial reasoning into three progressive dimensions, enabling systematic generation of multi-hop questions spanning viewpoint transformation and inter-object relational reasoning.


[SEE] Multi-hop Viewpoint Transformation

Tests the MLLMs' ability to decouple their view from the camera's pose and mentally synthesize views from arbitrary angles. It includes Multi-Step Orientation Tracking (MOT) and Relative Angular Calculation (RAC).

Type A1 (MOT): Standing at the [object_desc], facing [cardinal direction], turn [angle1]° [dir1], then turn [angle2]° [dir2], what is the NEAREST object?

Type A2 (RAC): Standing at [object_desc], initially facing [object_desc], turn to face [object_desc], then turn to face [object_desc]. What is the TOTAL cumulative angle turned?

[LOCATE] Inter-Object Spatial Relationship

Evaluates reasoning about inter-object spatial layouts as a structured layout of interconnected entities. It involves Multi-Hop Object Identification (MOI) and Multi-Hop Direction Identification (MDI).

Type B1 (MOI): What [object_desc] is directly to the [cardinal direction] of the NEAREST object that is [cardinal direction] of the [object_desc]?

Type B2 (MDI): In which direction is the [object_desc] to the [cardinal direction] of the [object_desc], relative to the [object_desc] itself?

[MOVE] Embodied Action Simulation

Challenges MLLMs to execute virtual movements and predict the visual consequences of these actions. It features Pure Translational Movement (PTM) and Rotation-Translational Movement (RTM).

Type C1 (PTM): From the [object_desc], near the [object_desc], walk straight [cardinal direction] for [number] meters. What is the FIRST object you will encounter?

Type C2 (RTM): From the [object_desc], walk [cardinal direction] [number] meters toward the [object_desc] area, then turn [angle] to face [cardinal direction]. Is the [object_desc] still visible from your new position and facing direction?

Methodology Pipeline

OmniCoT translates 3D scene geometry into structured language representation, generates multidimensional candidate questions (See, Locate, Move), and applies rigorous dual-LLM reasoning judges to select high-quality QA pairs.

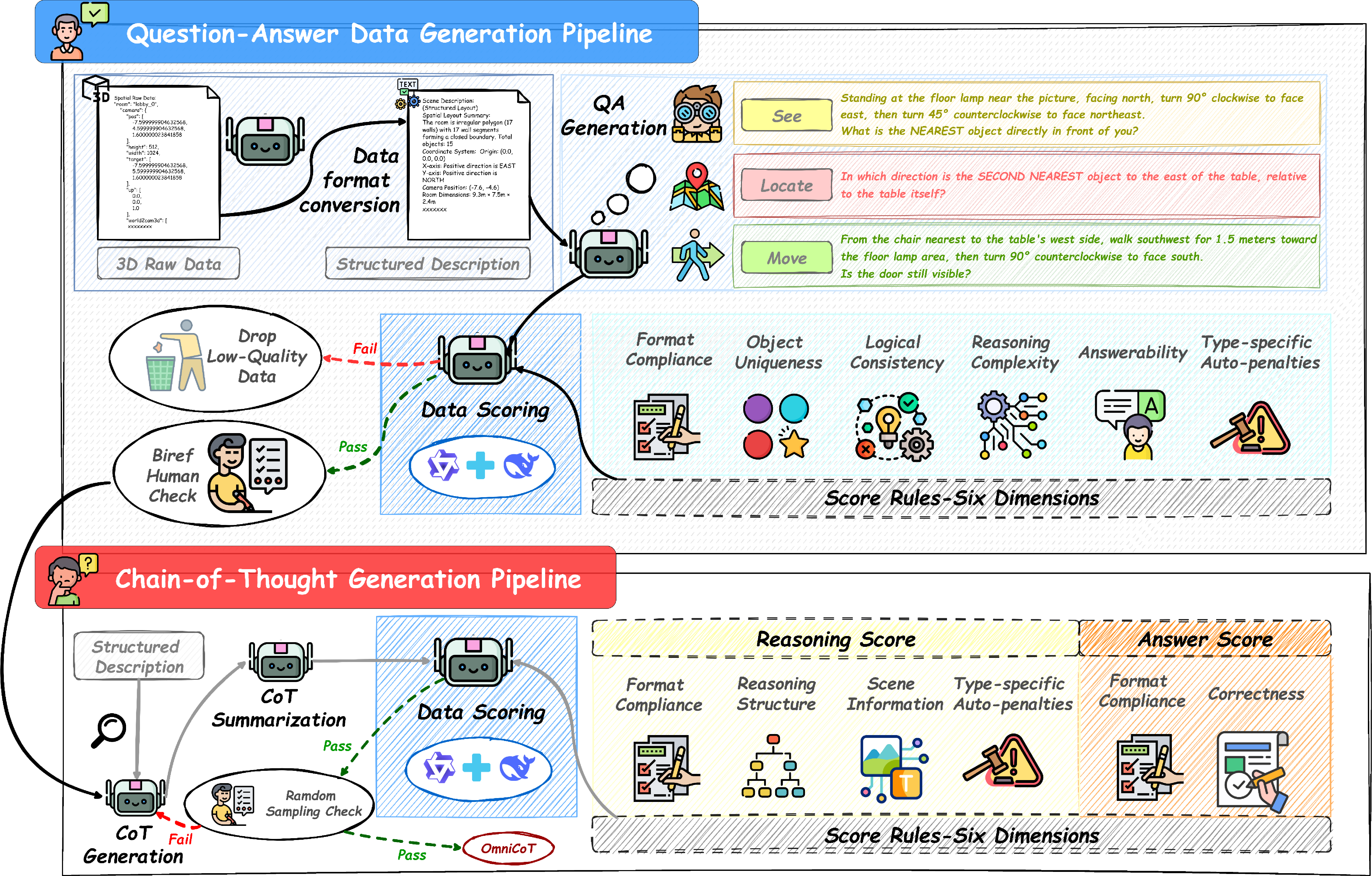

Figure 2: The hybrid pipeline for automated generation and expert supervision of OmniCoT datasets.

OmniCoT-B Leaderboard

Performance of SoTA MLLMs on the OmniCoT-B Benchmark, measuring both Accuracy (See/Locate/Move) and CoT Quality (Precision/Recall/F1/VC/SES/RF).

Model	Accuracy Evaluation				Chain-of-Thought Evaluation
Model	See	Locate	Move	Overall	Pre.	Rec.	F1	VC	SES	RF
Open-Source MLLMs
Qwen2.5-VL-3B-Instruct	34.27	17.15	31.43	26.90	26.17	18.23	21.49	36.85	23.36	39.82
Qwen2.5-VL-7B-Instruct	33.77	15.53	24.33	23.53	34.60	20.52	25.76	43.85	28.05	41.40
Qwen2.5-VL-32B-Instruct	47.84	21.93	31.99	32.39	42.05	27.39	33.17	57.33	31.97	49.18
Qwen2.5-VL-72B-Instruct	52.03	23.69	35.05	35.26	46.57	28.53	35.39	49.51	36.30	54.80
Qwen3-VL-8B-Instruct	41.52	18.73	26.59	27.56	61.22	29.48	39.80	85.09	79.05	63.49
LLaVA-OneVision-1.5-8B	42.40	14.61	29.95	27.51	36.99	19.53	25.56	49.88	21.84	44.43
LLaVA-v1.5-7B	15.00	9.82	16.80	13.76	30.56	12.93	20.04	37.66	14.72	43.76
LLaVA-v1.5-13B	21.01	14.17	11.71	15.02	40.88	16.60	23.62	35.70	14.93	42.76
LLaVA-v1.6-Mistral-7B	22.01	17.24	11.40	16.31	35.18	17.64	23.49	34.80	22.56	37.64
LLaVA-v1.6-Vicuna-7B	11.13	12.63	19.24	14.70	30.56	9.60	14.61	28.52	25.41	35.66
LLaVA-v1.6-Vicuna-13B	16.32	15.00	22.33	18.07	30.40	11.31	16.48	31.36	16.41	37.12
InternVL3.5-14B	41.77	20.35	31.64	30.11	40.54	27.99	33.11	46.94	36.18	49.61
Closed-Source MLLMs
ChatGPT-4o	51.97	15.18	33.65	31.58	42.46	25.51	31.87	62.99	42.03	51.41
GPT-5	57.29	24.40	42.71	39.72	51.43	34.79	41.51	63.05	57.30	57.10
Doubao-1.5-Vision-Pro	54.91	8.38	28.08	27.77	45.47	22.53	30.13	71.02	42.85	47.95
Doubao-1.8	57.09	23.87	41.14	38.90	42.56	29.92	35.13	66.29	49.94	55.79
Gemini3-Flash	47.52	14.17	29.29	28.43	79.30	22.46	35.01	70.22	46.54	68.73
GLM-4.5v	53.15	15.05	28.60	29.95	47.82	23.07	31.12	66.98	38.31	56.63
Step3	48.40	16.71	33.69	31.23	58.59	22.53	32.55	63.71	36.96	59.49
Grok-4	54.40	19.30	37.04	34.99	48.28	29.21	36.40	55.36	53.88	48.65
Qwen3-Max	52.03	6.19	12.97	20.58	43.88	22.03	29.33	72.76	38.39	57.48

Training Strategy & Results (OmniCoT-R1)

SFT + GRPO

Building upon OmniCoT-T, we develop OmniCoT-R1 via a two-stage strategy. Supervised Fine-tuning (SFT) first anchors reasoning to panoramic evidence (e.g., bearings, proximity). Initialized from this SFT checkpoint, Group Relative Policy Optimization (GRPO) then penalizes geometrically incoherent paths to consolidate global 360° spatial consistency.

Model	Accuracy Evaluation				Chain-of-Thought Evaluation
Model	See	Locate	Move	Overall	Pre.	Rec.	F1	VC	SES	RF
Qwen2.5-VL-7B-Instruct	33.77	15.53	24.33	23.53	34.60	20.52	25.76	43.85	28.05	41.40
OmniCoT-R1 (SFT)	59.41	39.44	52.06	49.31	42.89	34.22	38.07	46.25	57.87	53.93
OmniCoT-R1 (SFT+GRPO)	67.97	51.82	61.34	59.54	55.81	47.19	51.14	59.20	66.64	63.21

Key Insights & Analysis

1. Divergent Impact of CoT on MLLMs

For open-source models, CoT acts as an effective panoramic spatial navigator. As shown in the table below, forcing models to "think" (w/ CoT) generally improves their overall reasoning ability compared to direct answering (w/o CoT). Conversely, forcing CoT on closed-source models (e.g., Gemini3-Flash) actively degrades their accuracy. The verbose generation of long reasoning steps inherently carries a risk of cumulative hallucination, which currently outweighs the logical benefits of CoT for top-tier closed-source models. We also observe a paradoxical "Reasoning-Answer Mismatch" or "linguistic blind-navigation", revealing that their internal reasoning process is often driven by text priors rather than true cross-modal spatial perception.

Model	w/o CoT	w/ CoT	Δ
Open-Source MLLMs
Qwen3-VL-8B-Instruct	25.39	27.56	+2.17
Qwen2.5-VL-72B-Instruct	26.51	35.26	+8.75
InternVL3.5-14B	23.79	30.11	+6.32
LLaVA-v1.5-7B	4.91	13.77	+8.86
Close-Source / API MLLMs
Qwen3-Max	25.39	20.58	-4.81
GPT-5	42.66	39.72	-2.94
Doubao-1.5-Vision-Pro	30.96	27.76	-3.20
Gemini3-Flash	39.97	28.44	-11.53

2. The Impact of Spatial Anchor Density

Increasing the number of spatial anchors yields a "precision dividend" across most MLLMs. These reference points serve as global coordinate "pins" that mitigate spatial drift. Providing even a few anchors significantly activates the latent spatial reasoning capabilities of top-tier models like GPT-5.

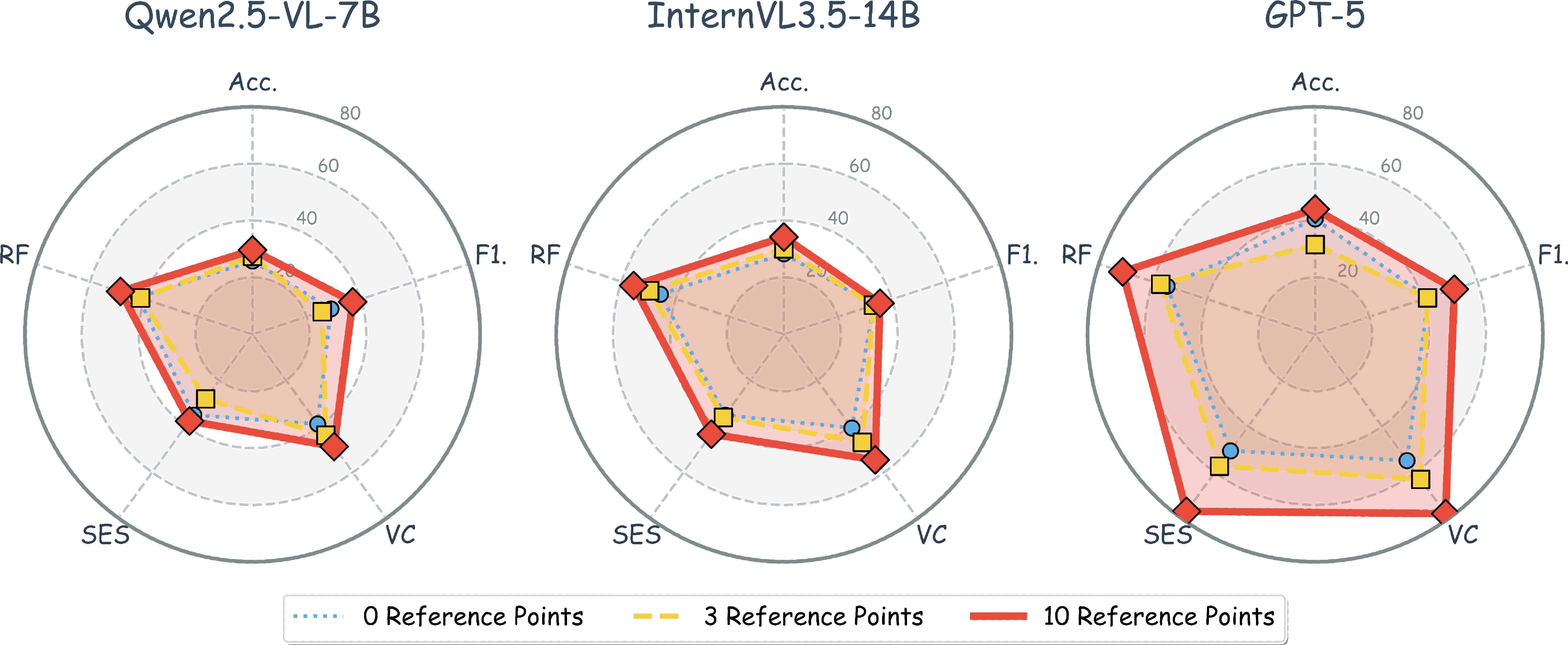

Capability Expansion via Spatial Anchors

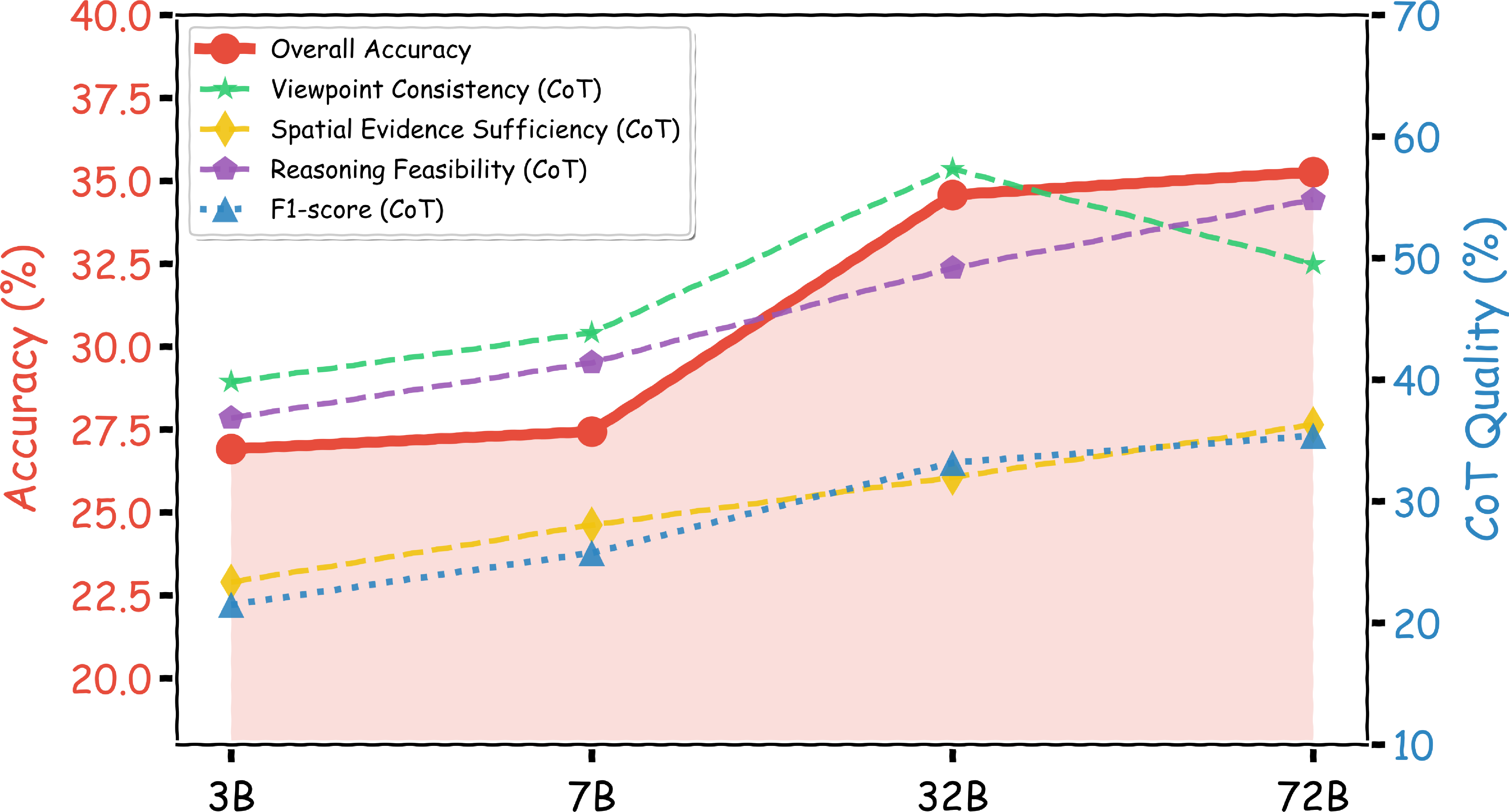

3. Scaling vs. Bottlenecks

While increasing parameter count broadens MLLM capabilities for panoramas, simple scaling eventually hits a plateau. The performance leap from 7B to 32B is substantial, yet the push to 72B yields only minor gains. Explicitly optimizing spatial reasoning via post-training is a more promising path forward.

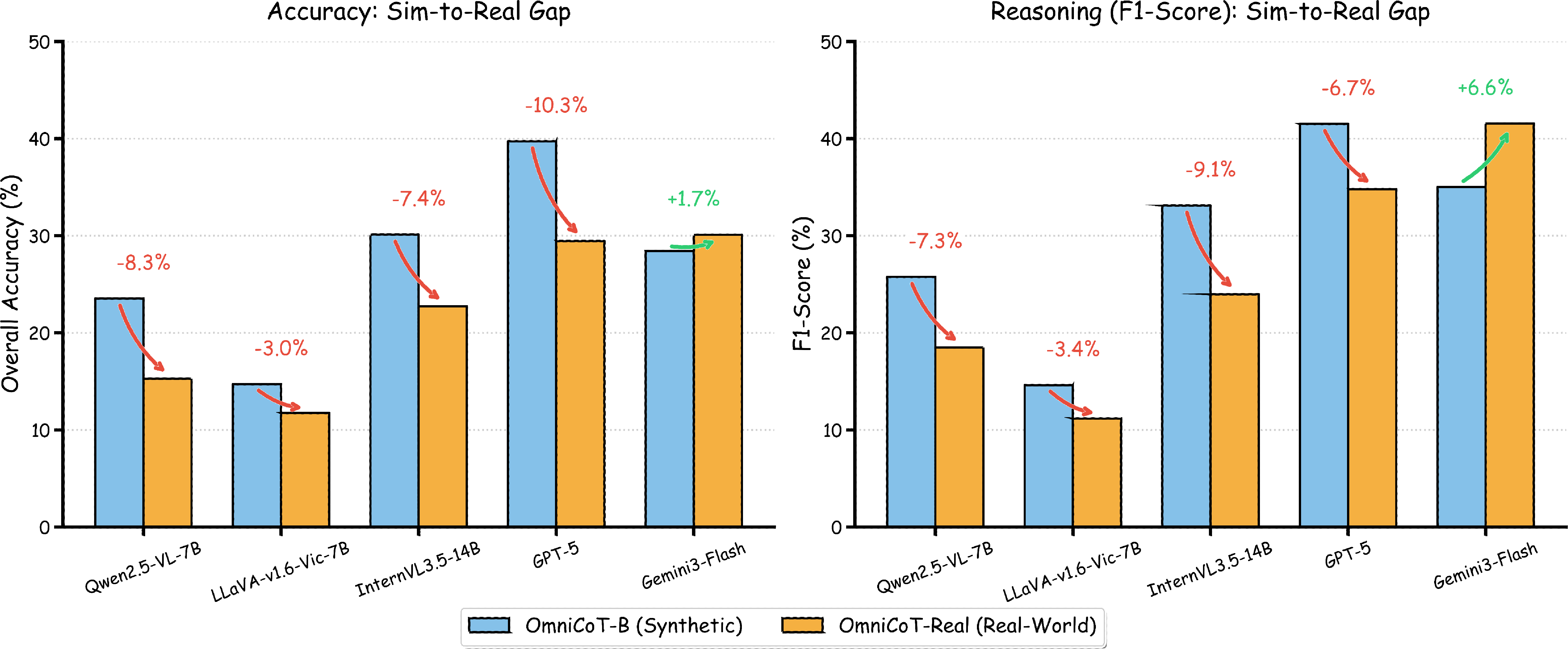

4. Sim-to-Real Gap

Transitioning from synthetic to real-world panoramas exposes a substantial performance gap. Models struggle with fine-grained relationship reasoning amidst authentic lens distortion and object occlusion, emphasizing the indispensable role of real-world panoramic data.

BibTeX

@article{he2026omnicot,
  title={OmniCoT: A Benchmark for Global and Multi-Step Panoramic Reasoning},
  author={He, Haocong and Liao, Chenfei and Wen, Zichen and Dongfang, Zihao and Zheng, Xu and Ren, Bin and Su, Chang and Zhang, Zixin and Chen, Harold Haodong and Zhang, Hongfei and Li, Weijia and Yang, Kailun and He, Conghui and Hu, Xuming and Sebe, Nicu and Zhang, Linfeng},
  journal={arXiv preprint},
  year={2026}
}
